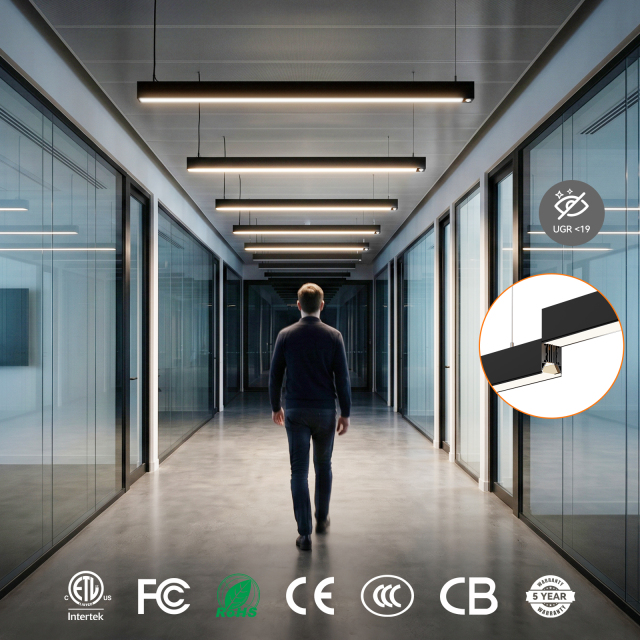

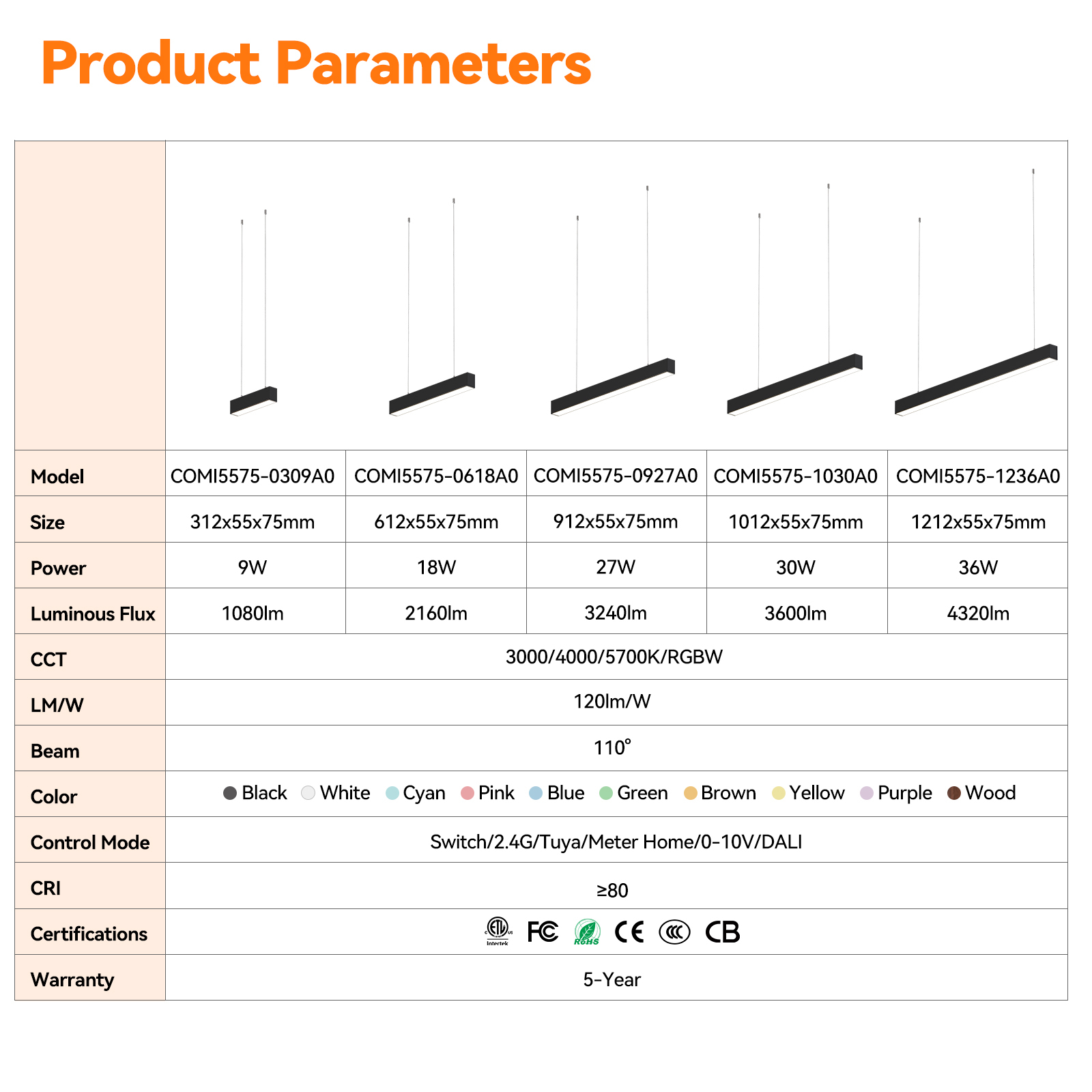

| Product Name | Induction Motion-Sensor LED Linear Light |
|||
| Size | 612x55x75mm | 912x55x75mm | 1012x55x75mm | 1212x55x75mm |
| Wattage | 18W | 27W | 30W | 36W |
| Luminous Flux | 2160Im | 3240lm | 3600lm | 4320Im |
| Input Voltage | 100-277v | |||
| Luminous Efficiency | 120Im/W |
|||
| Color Temperature | 3000/4000/5700K/RGBW | |||
| Color Rendering Index (CRI) | CRI ≥80 |
|||
| Dimming | 0-10V Dimmable |
|||

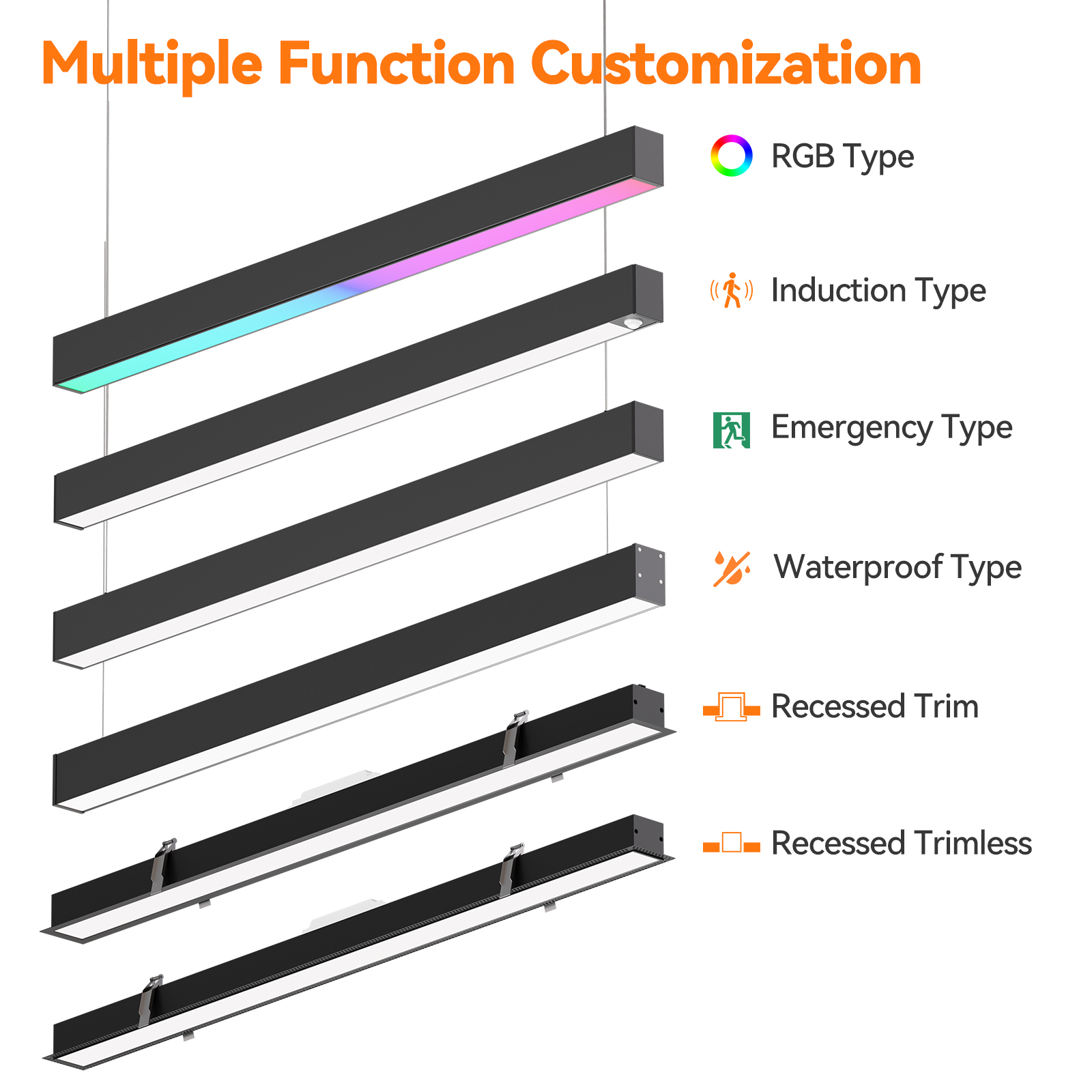

| Control Mode | Switch/2.4G/Tuya/Meter Home/0-10V/DALI |
|||
| Housing Material | Aluminum/Metal |
|||

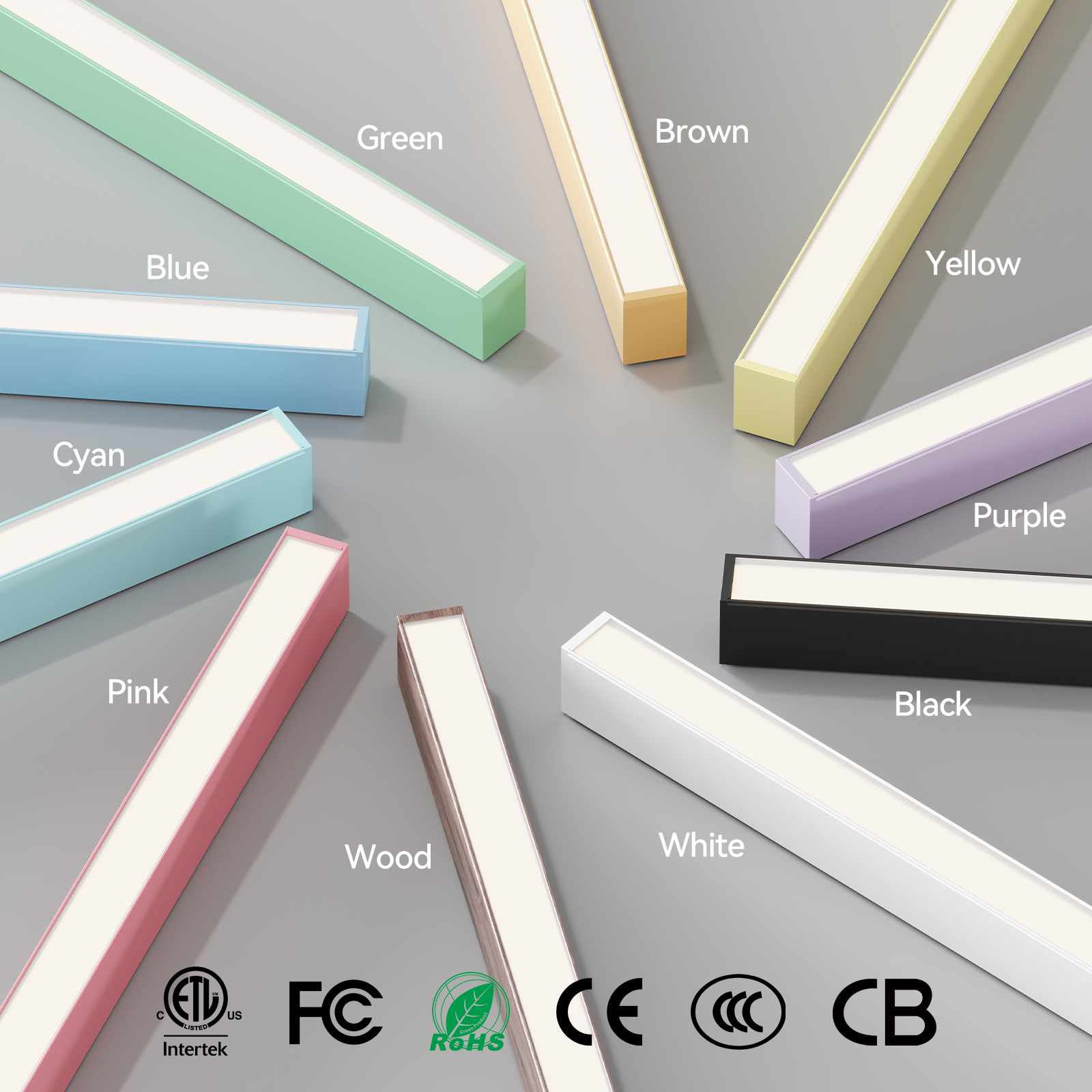

| Finish | Green/Brown/Yellow/Blue/Cyan/Purple/Pink/Black/White/Wood/Customizable |
|||

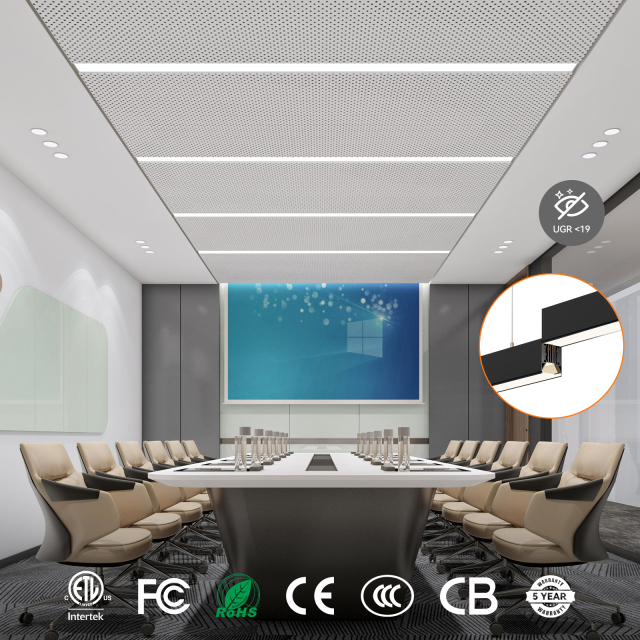

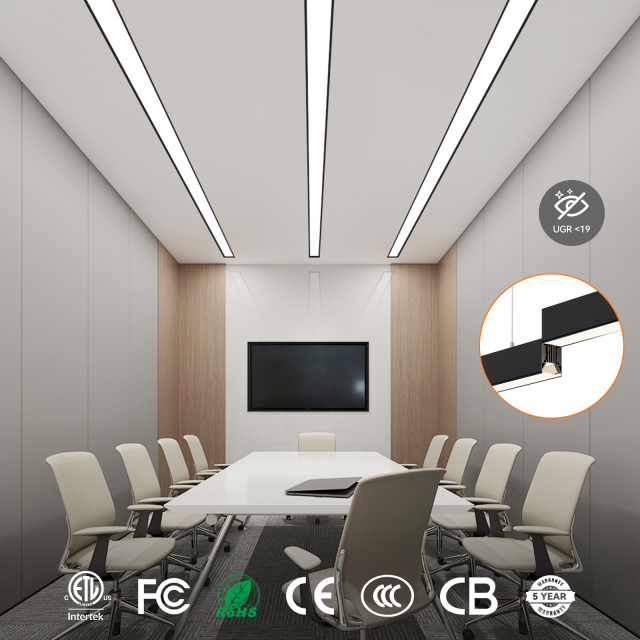

| Installation | Ceiling-mounted，Pendant-mounted，Wall-mounted，Pre-embedded，Embedded |
|||
| Beam Angle | 110° |
|||
| IP Rating | IP54 |
|||

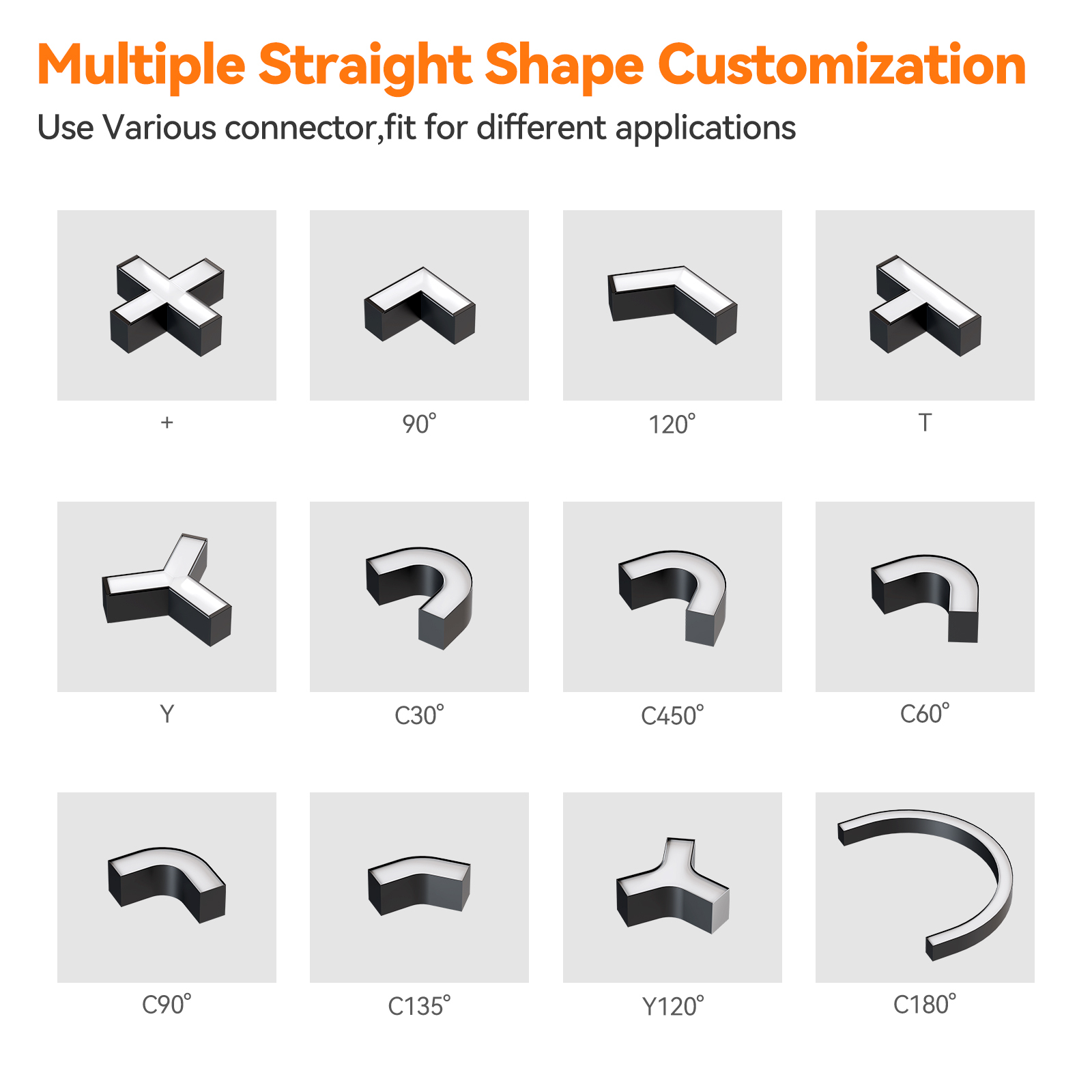

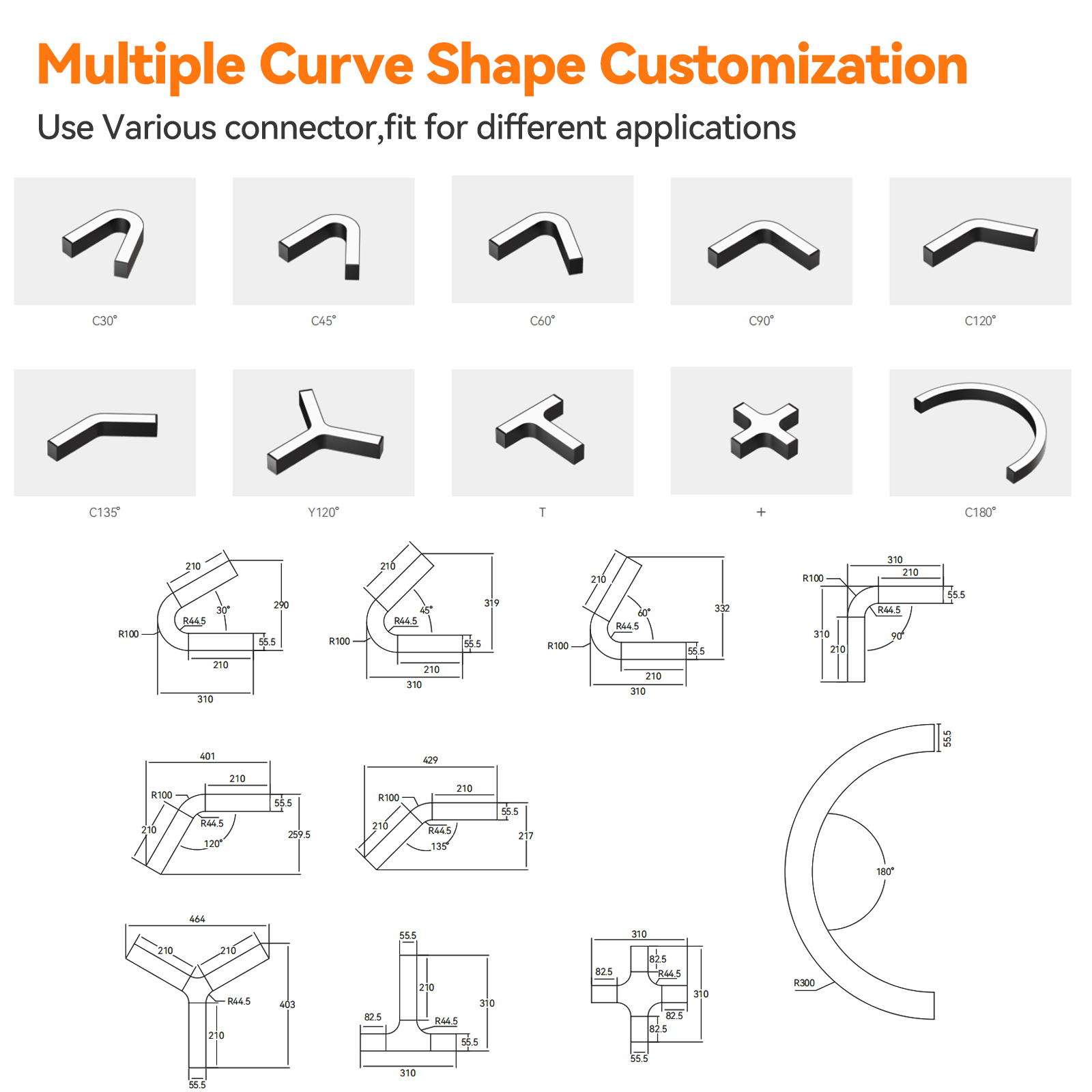

| Interface Type | 90°/120°/T/X/Y |
|||
| Operating Temperature | -20°C to +45° |
|||
| Lifetime | 50,000 Hours |
|||
| Warranty | 5 Years |
|||
| Certifications | ETL/FC/RoHS/CB/CE/ISO |
|||
| Warranty | 5-Year Limited |
|||
| OEM / ODM | Supported |
|||
| Private Label | Supported |
|||

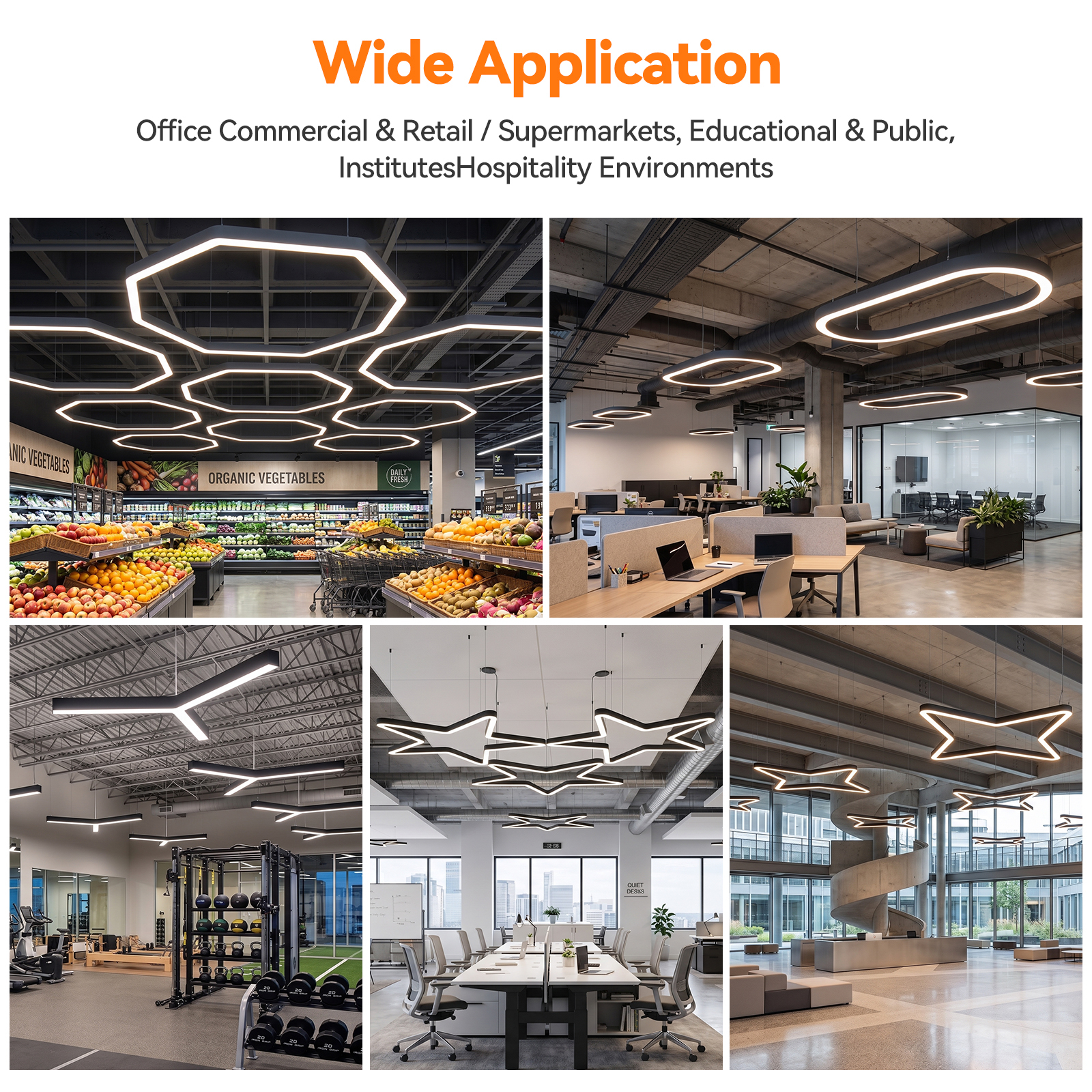

| Application | Car‑Wash Shop, Damp Corridor, Covered Patio, Basement, Supermarket, Wet‑Location Commercial Buildings |
|||

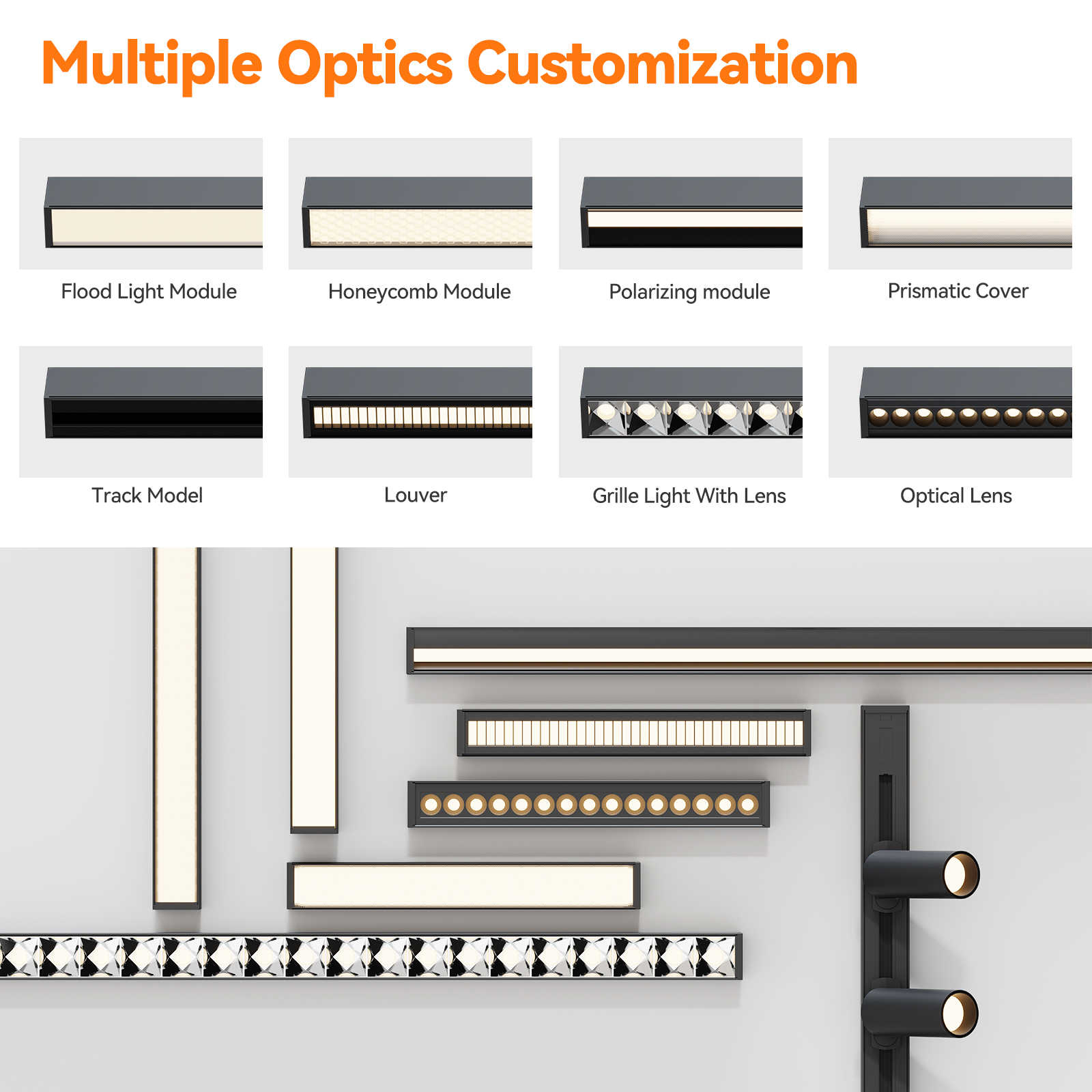

| Multiple Optics Customization | Flood Light Module |
|||
Company Information
Q1: What protection level does this waterproof linear light achieve?
A: It features IP54 dust‑proof and splash‑resistant performance with integrated premium silicon sealing structure. It can resist splashing water and dust intrusion for damp and semi‑outdoor environments.

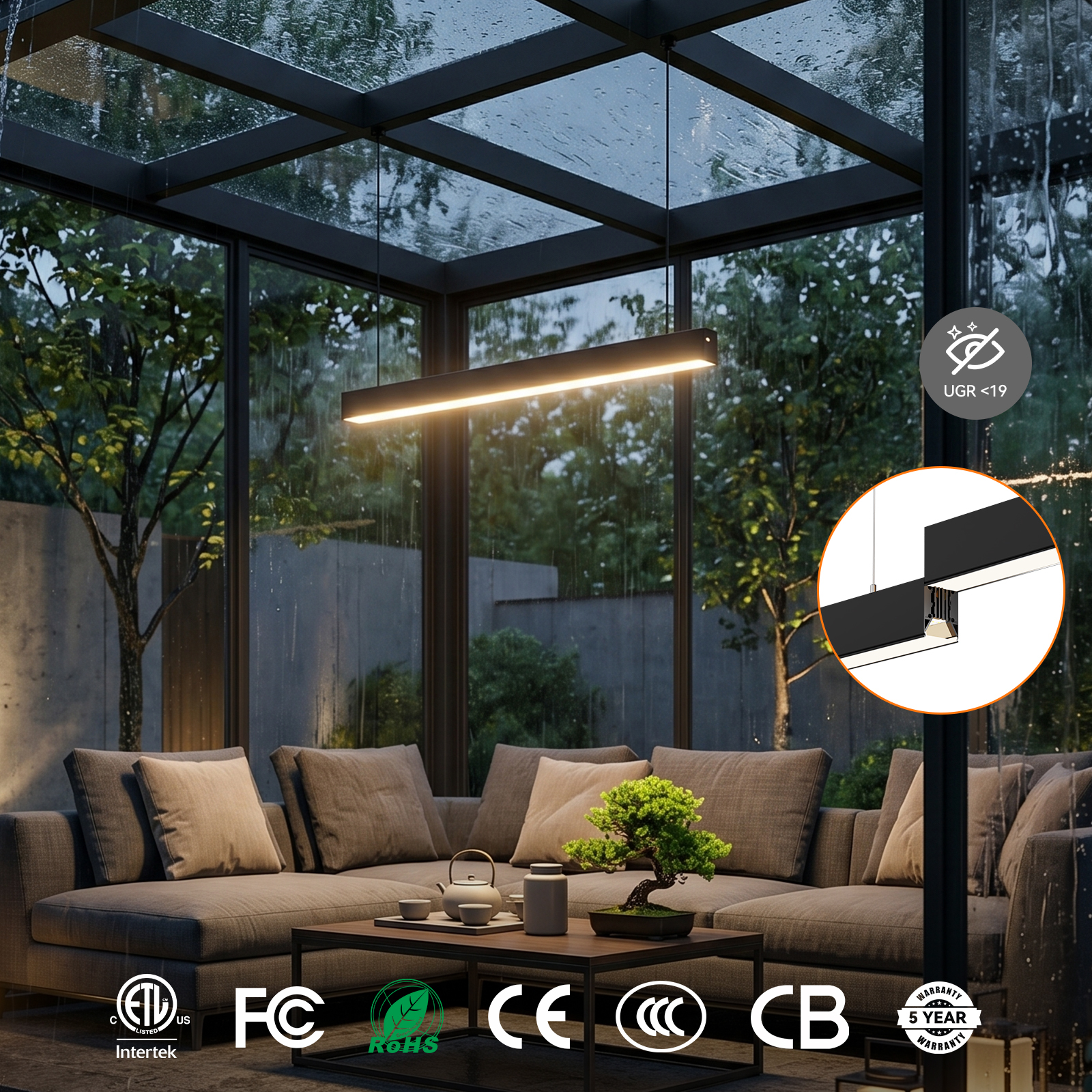

Q2: What kinds of spaces and projects is this IP54 waterproof linear light suitable for?A: Perfect for covered patios, porch eaves, balconies, covered walkways, garages, semi‑outdoor commercial zones and humid interior spaces.
Q3: Will the waterproof sealing design compromise lighting performance?A: No. It retains UGR＜19 anti‑glare optics, CRI≥80 high color rendering, 0‑10V dimming capability and multi‑optical‑lens options. The waterproof structure only improves environmental protection without sacrificing light quality.

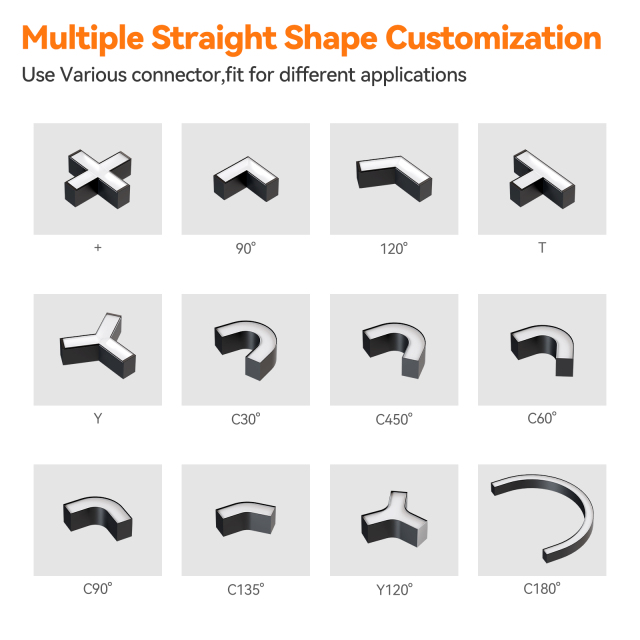

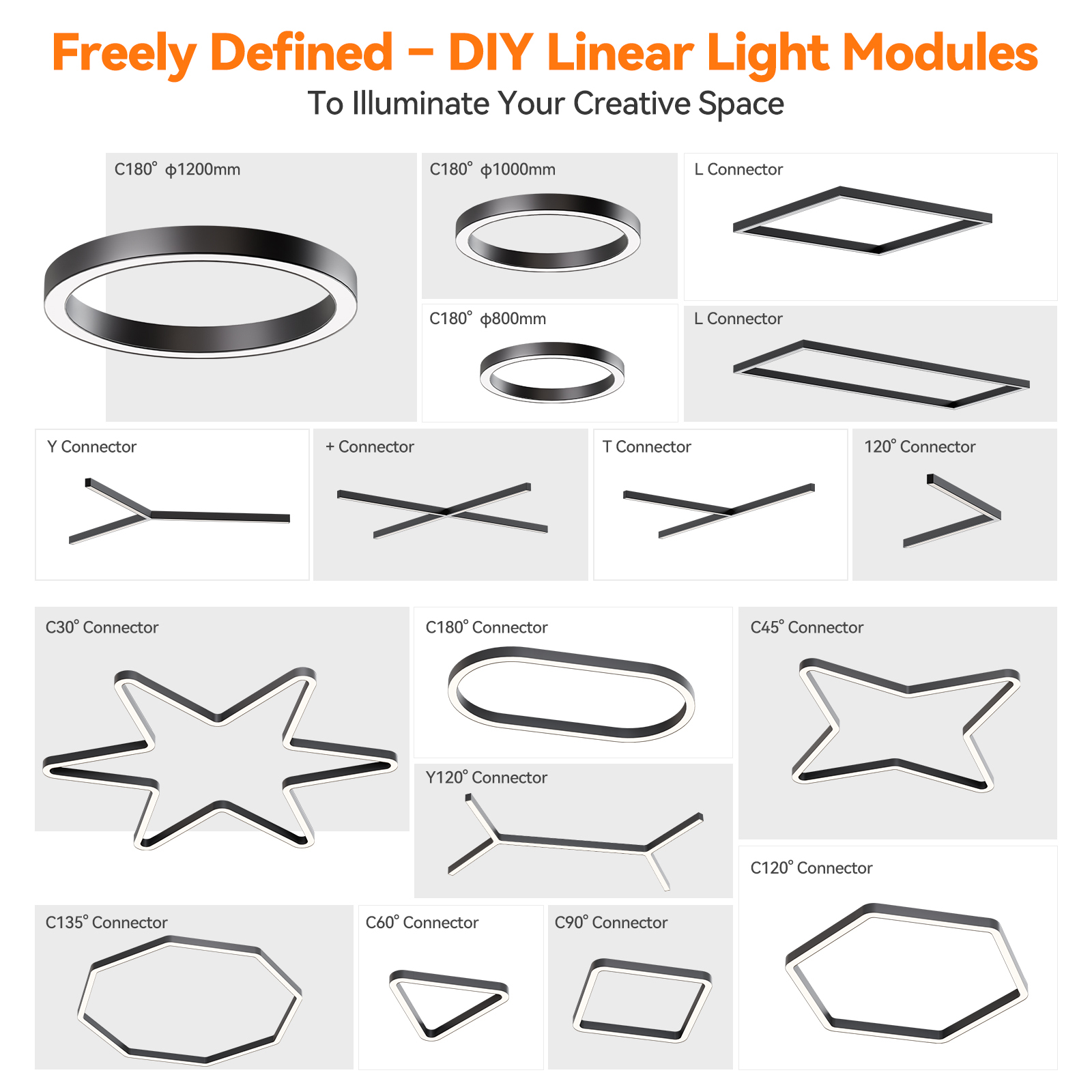

Q4: Can I make DIY customized lighting layouts on‑site with these connectors?A: Yes. With the full set of sealed dedicated connectors, you can assemble straight runs, right‑angle turns, multi‑way branches and curved outlines on‑site. You can complete flexible DIY layouts according to actual ceiling and wall conditions of semi‑outdoor or humid projects.
Q5: What installation methods are supported for this waterproof linear fixture?
A: It supports five‑in‑one installation modes: ceiling‑mounted, pendant‑mounted, wall‑mounted, pre‑embedded and embedded. Different mounting solutions can be selected according to project site conditions.
