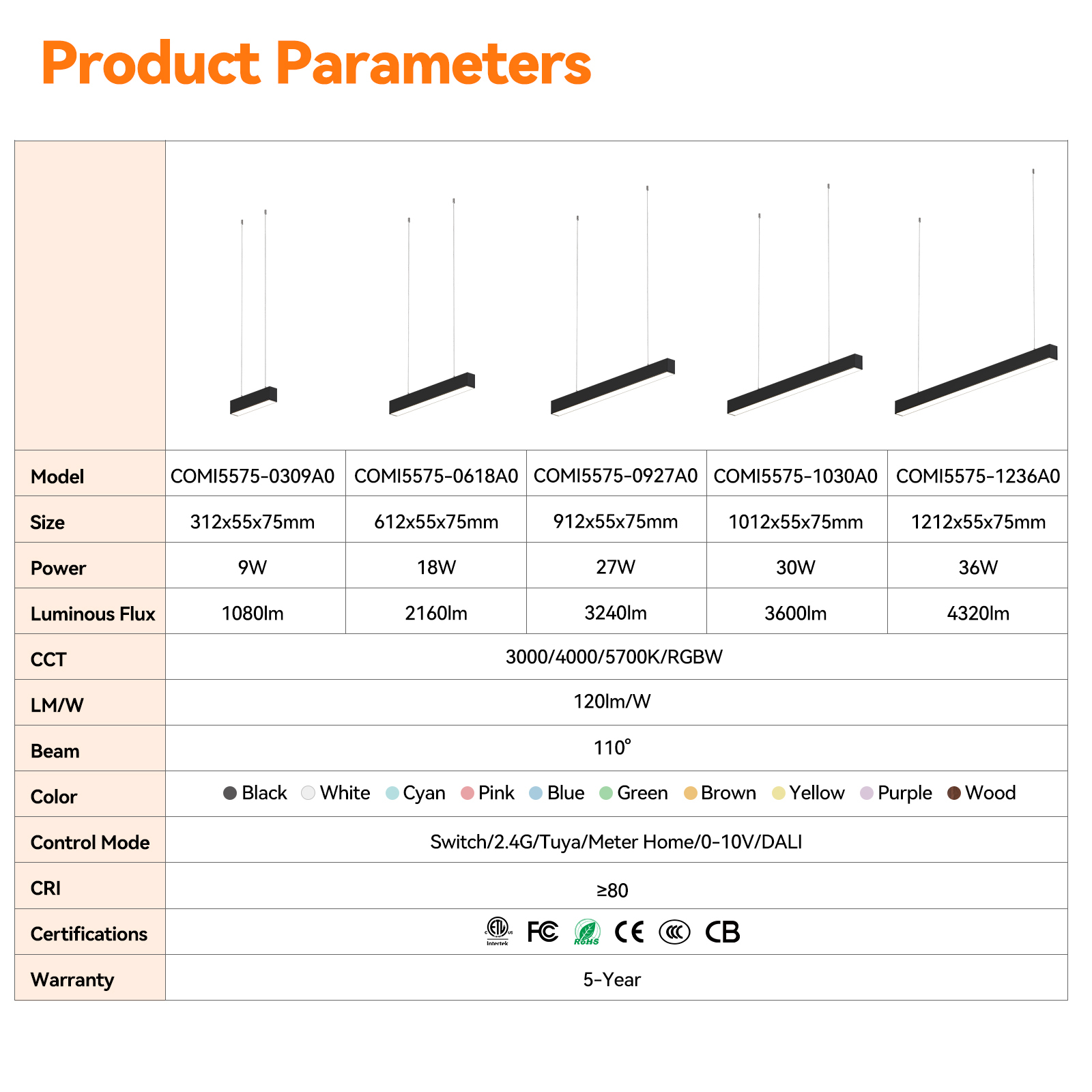

| Product Name | RGBW LED Linear Light |
||||
| Size | 312x55x75mm | 612x55x75mm | 912x55x75mm | 1012x55x75mm | 1212x55x75mm |
| Wattage | 9W | 18W | 27W | 30W | 36W |
| Luminous Flux | 1080Im | 2160Im | 3240lm | 3600lm | 4320Im |
| Input Voltage | 100-277v | ||||
| Luminous Efficiency | 120Im/W |
||||
| Color Temperature | 3000/4000/5700K/RGBW | ||||
| Color Rendering Index (CRI) | CRI ≥80 |
||||
| Dimming | 0-10V Dimmable |
||||
| Control Mode | Switch/2.4G/Tuya/Meter Home/0-10V/DALI |
||||
| Housing Material | Aluminum/Metal |
||||

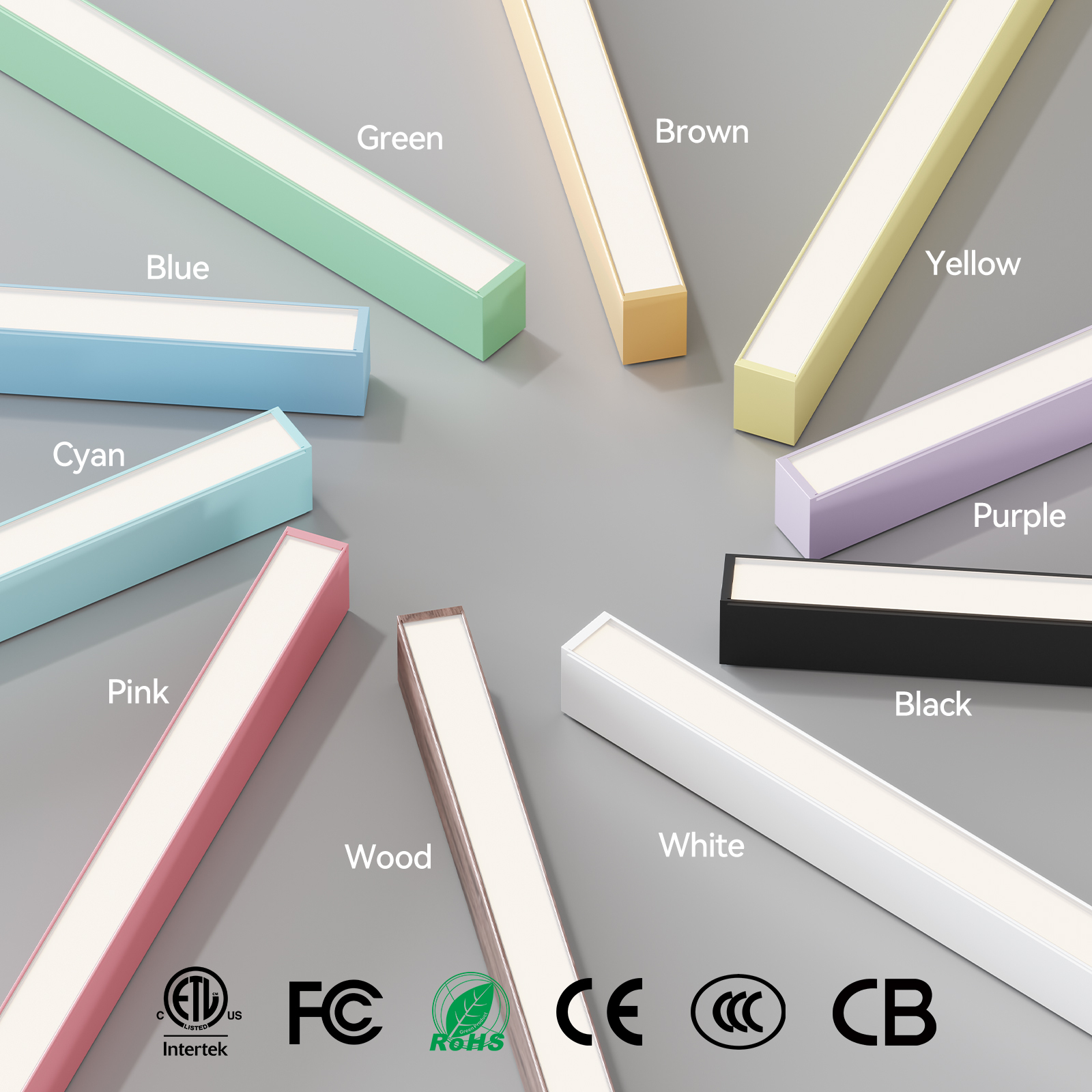

| Finish | Green/Brown/Yellow/Blue/Cyan/Purple/Pink/Black/White/Wood/Customizable |
||||

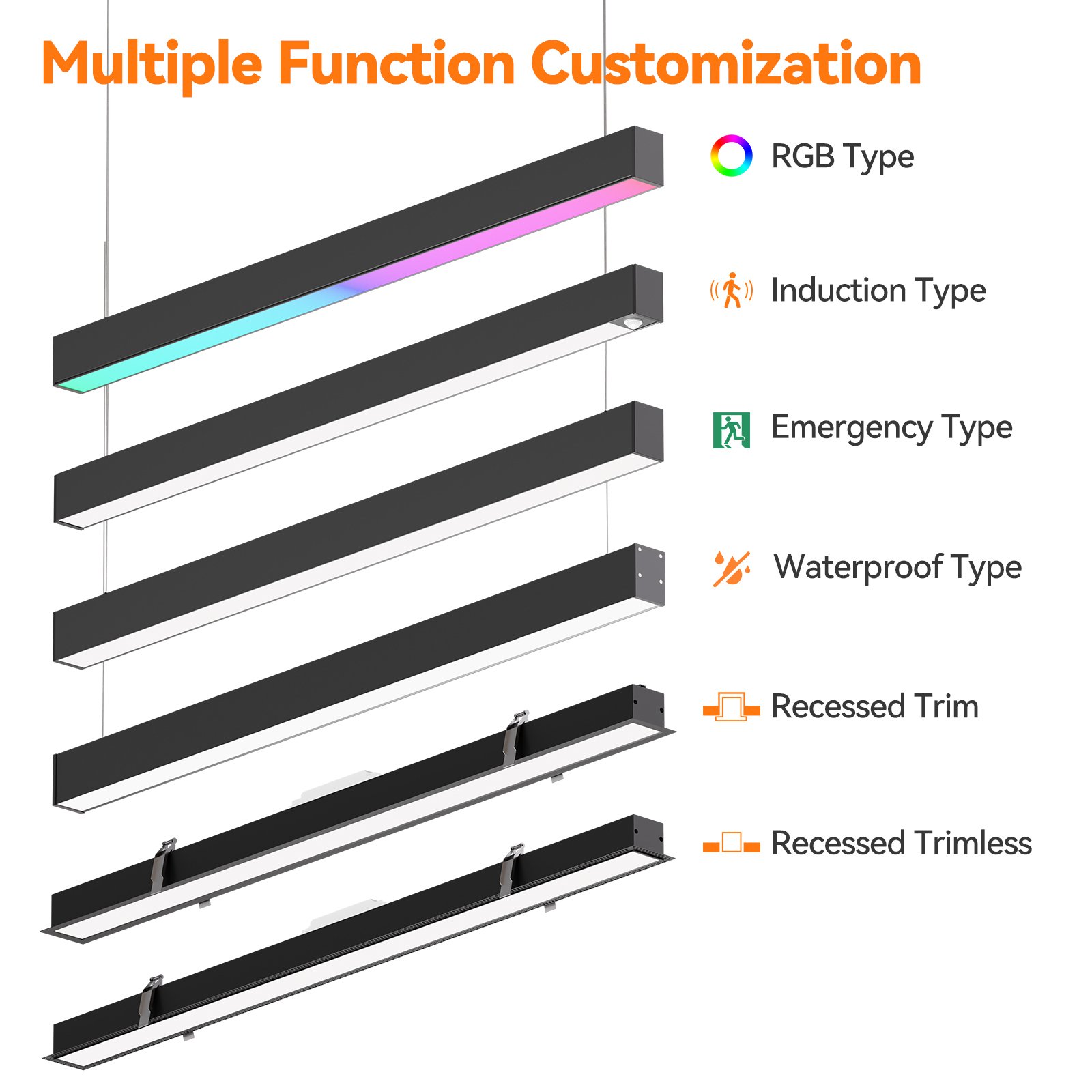

| Installation | Ceiling-mounted，Pendant-mounted，Wall-mounted，Pre-embedded，Embedded |
||||
| Beam Angle | 110° |
||||
| IP Rating | IP40 |
||||

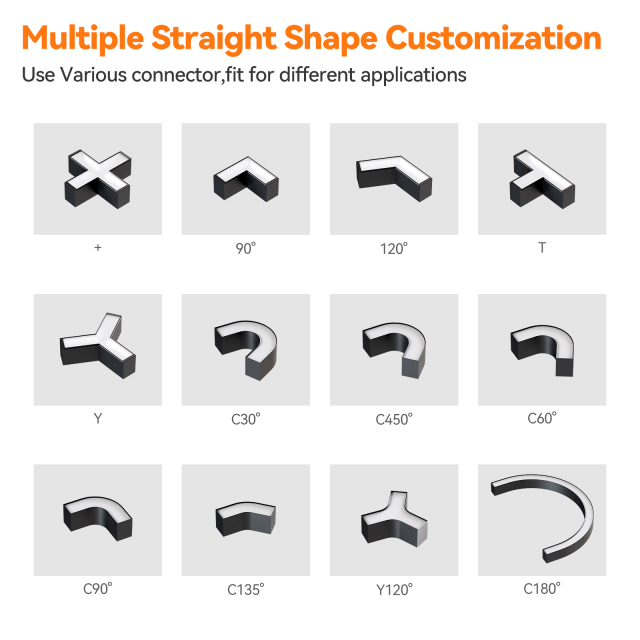

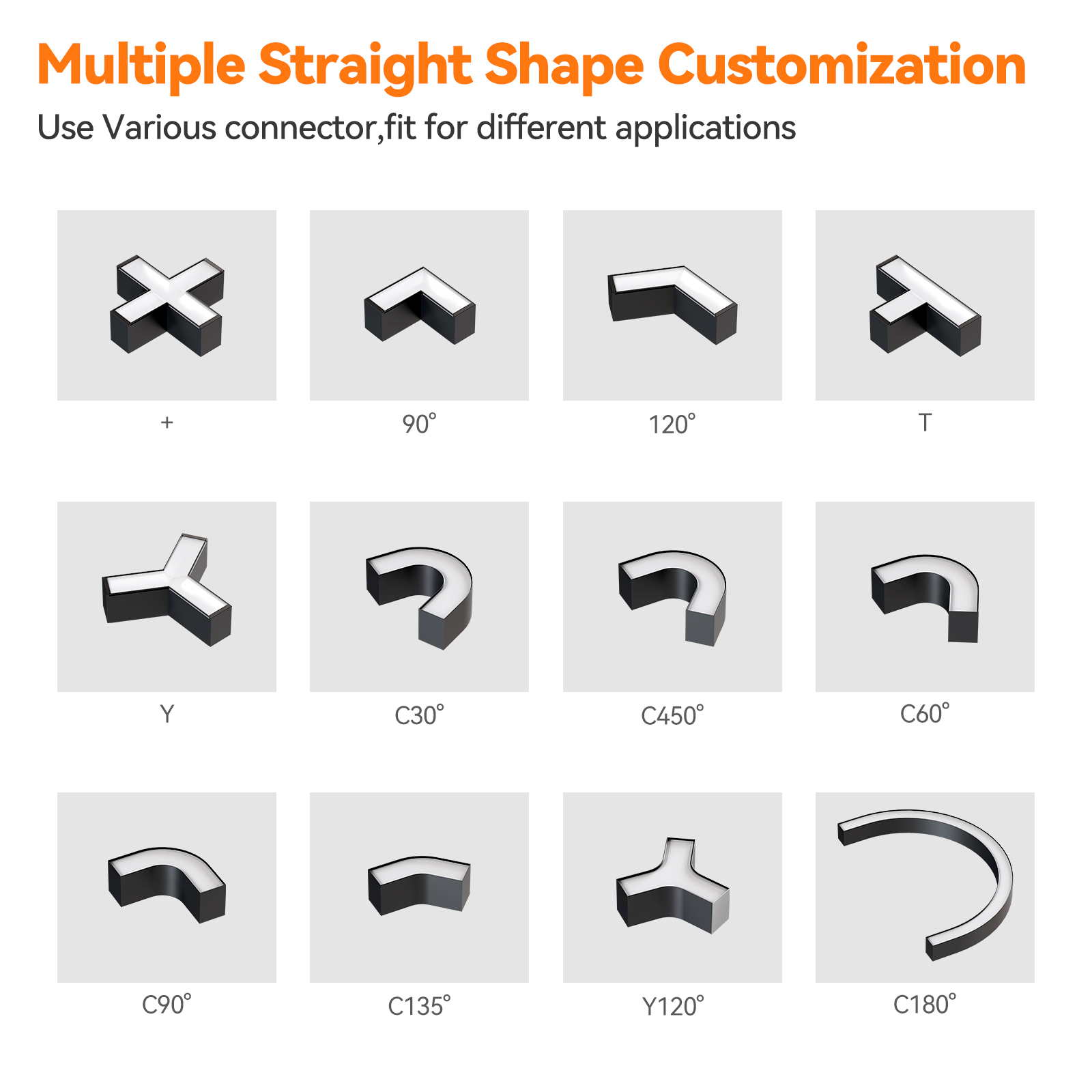

| Interface Type | 90°/120°/T/X/Y |
||||
| Operating Temperature | -20°C to +45° |
||||
| Lifetime | 50,000 Hours |
||||
| Warranty | 5 Years |
||||
| Certifications | ETL/FC/RoHS/CB/CE/ISO |
||||
| Warranty | 5-Year Limited |
||||
| OEM / ODM | Supported |
||||
| Private Label | Supported |
||||

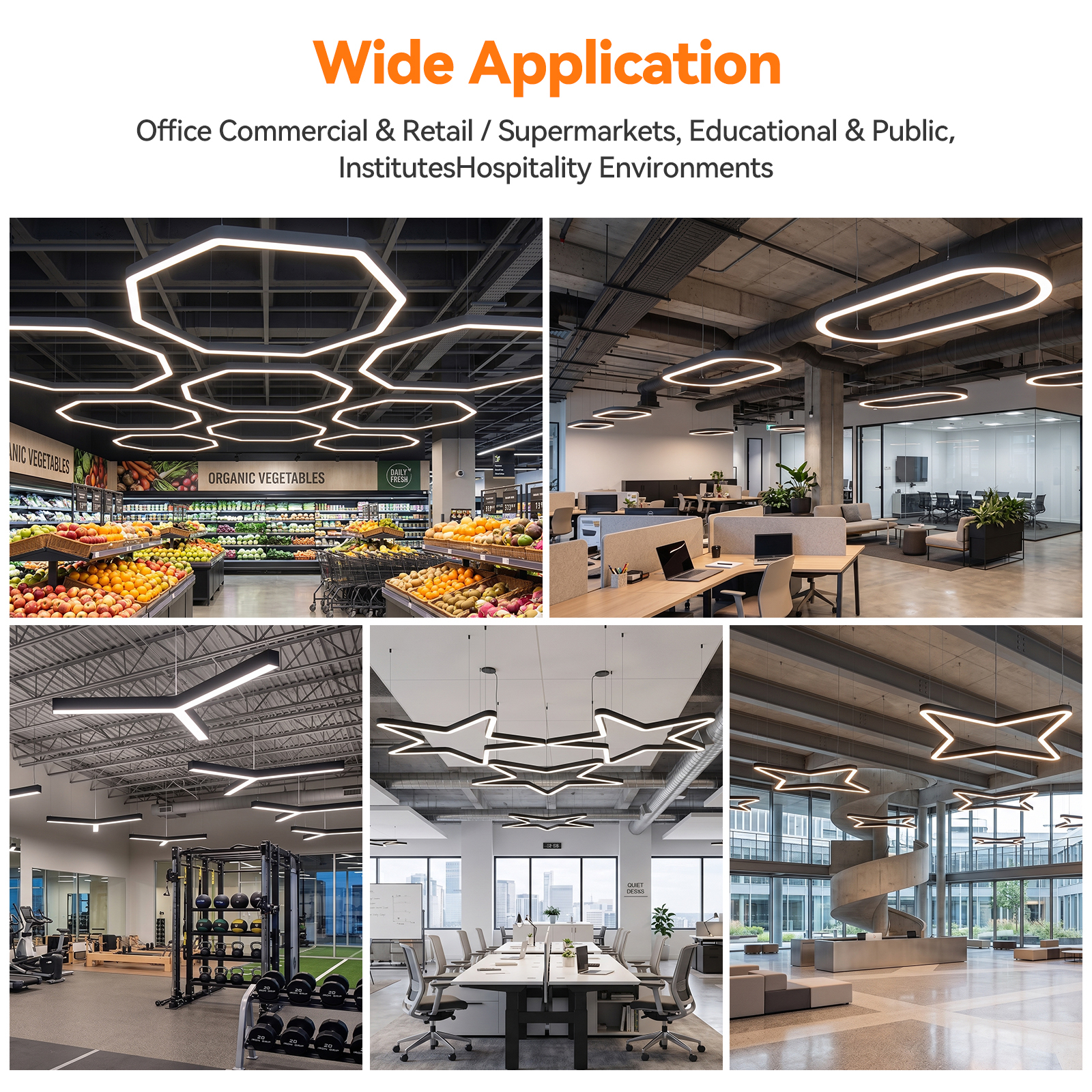

| Application | Bar, Restaurant, Club, Shopping Mall, Exhibition Hall, Entertainment Commercial Buildings |
||||

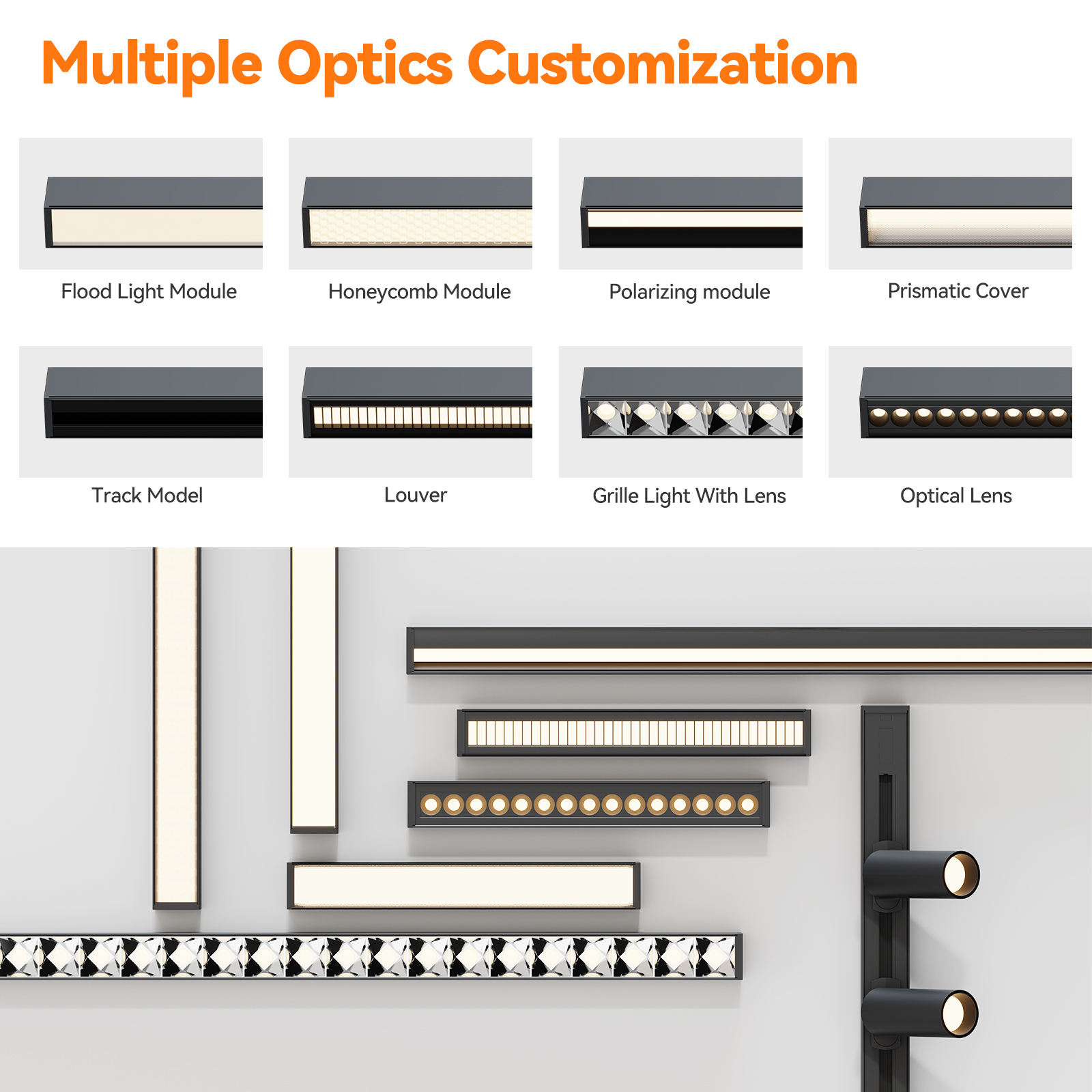

| Multiple Optics Customization | Louver/Optical Lens/Flood Light Module/polarizing module/Grille Light With Lens/Prismatic Cover/Honeycomb Module/Track Model |
||||
Company Information

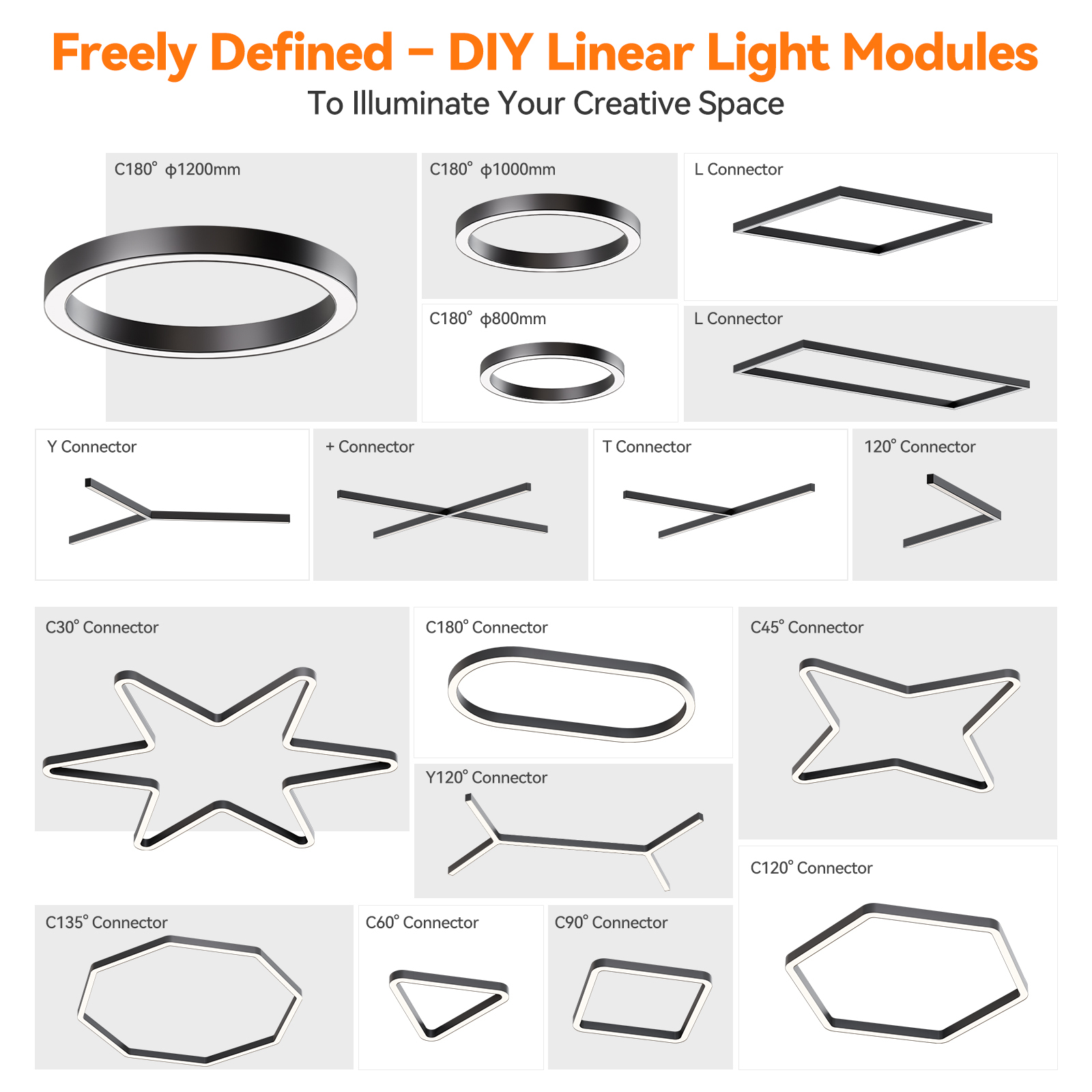

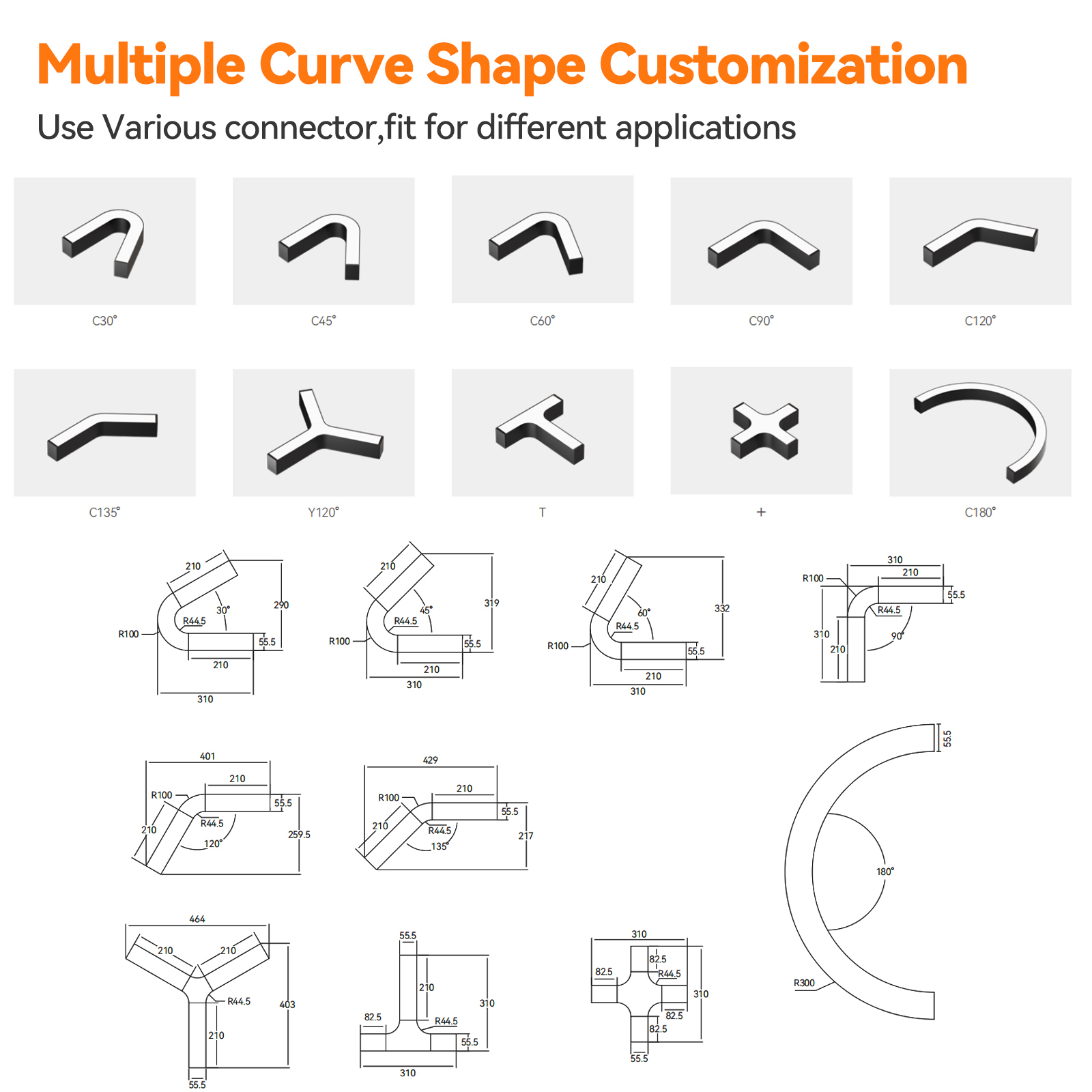

Q1: Can This RGBW Linear Light Be Assembled With Straight And Right‑Angle Corner Connectors For Custom Diy Layout?A: Yes. This RGBW Linear Light Is Designed For On‑Site Splicing. You Can Adopt Straight Connectors For Long Straight Runs And Right‑Angle Corner Connectors To Create L‑Shape, U‑Shape Or Other Irregular Diy Layouts. Multiple Optional Optical Lenses Are Also Available, Allowing You To Adjust Beam Angles To Meet Different Project Lighting Requirements.
Q2: What Is The Rated Service Life Of This RGBW Led Linear Light?A: Adopting High‑Quality Led Light Source And Stable Constant‑Current Driver, This RGBW Linear Light Has A Rated Lifespan Up To 50000 Hours. Even With Frequent Switching Between White Lighting And Dynamic Color Modes, It Can Maintain Consistent Lighting Performance For Long‑Term Commercial Usage.

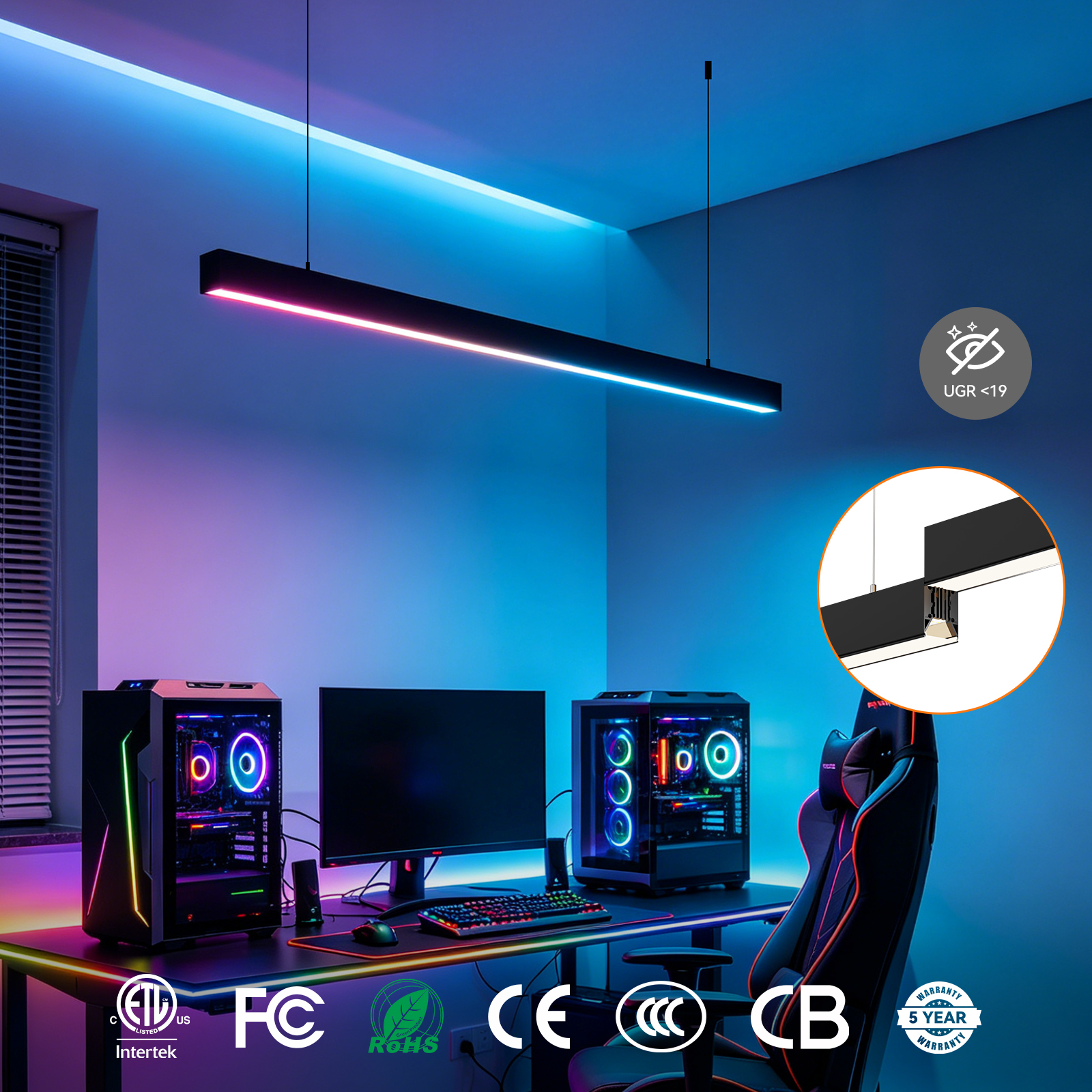

Q3: What types of projects and spaces is this RGBW linear light suitable for?A: It is widely applied for atmosphere‑focused commercial and high‑end interior projects, including gaming rooms, bars, clubs, retail store display areas, showrooms, hotel lobbies, entertainment venues, and luxury residential decorative lighting.
Q4: Does This RGBW Linear Light Support OEM & ODM Private Label Customization For Large Projects?A: Yes, We Offer Comprehensive OEM And ODM Private‑Label Services. We Can Support Customized Length Adjustment, Logo Laser Marking On Fixture Housing, Custom Color Temperature For White Channel, And Matching Packaging Solutions According To Your Specific Project Specifications.
Q5: What Safety Certifications Can Be Provided For Bulk Project Orders?A: This RGBW Linear Light Has Passed ETL Safety Certification. The Internal Driver And Led Components Comply With Relevant Commercial Lighting Safety Standards, Which Helps You Complete The Inspection For Your Indoor Commercial Construction Projects.
